923CZ5U104M050B, 104M50V, MD015E104MAB
923CZ5U224Z050, 224Z50V, MD015E224ZAB
923CC0G152M050, 923CC0G332M050
152M50V, MD015A152MAB
332M50V, MD015A332MAB
DIP IC PIN TYPE MONO CERAMIC CAPACITOR
DIP IC PIN TYPE MONOLITHIC CERAMIC CAPACITOR
딥 IC 핀 타입 모노 세라믹 콘덴서, 모노 세라믹 커패시터
딥 IC 핀 타입 모노리틱 세라믹 콘덴서, 모노리틱 세라믹 커패시터
Item: MONOLITHIC CERAMIC CAPACITOR
Description: DIP-2pin, 104M 50V, 0.1UF 50V-20%,
100nF 50V-20%, 100000PF 50V-±20%
Vendor: SPRAGE / VISHAY
D/C: n/a
Part No: 923CZ5U104M050, 104M50V, MD015E104MAB, E2-104M5
Q'ty: 5600 EA
Remark tube 200pcs
104M 50V, 100nF 50V -+20%
0.1uF 50V -+20%, 100000pF 50V
100nF50V, 0.1uF50V -+20%, 104M50V

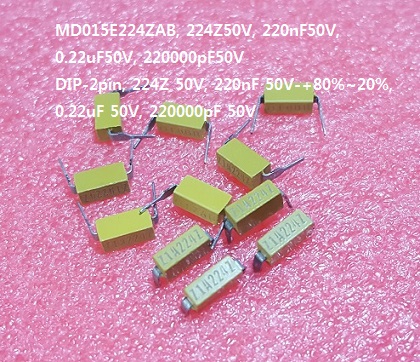

Item: MONOLITHIC CERAMIC CAPACITOR
Description: DIP-2pin, 224Z 50V, 220nF 50V-+80%~20%, 0.22uF 50V
Vendor: AVX
D/C: n/a
Part No: MD015E224ZAB
Q'ty: 1350 EA
Remark: TUBE 200pcs
224Z 50V, 220nF 50V-+80%~20%,
0.22uF 50V-+80%~20%, 220000pF 50V
220nF50V, 0.22uF50V-+80%~20%, 224Z50V

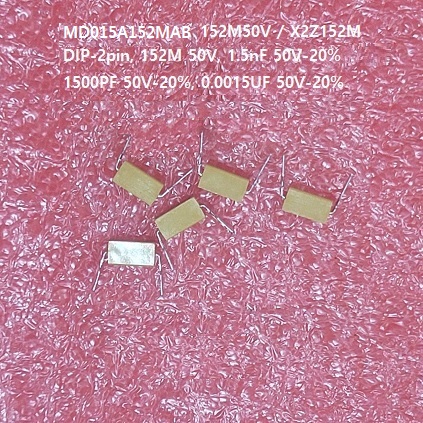

Item: MONOLITHIC CERAMIC CAPACITOR
Description: DIP-2pin, 152M 50V, 1.5nF 50V-20%,
1500PF 50V-20%, 0.0015UF 50V-20%
Vendor: AVX
D/C: n/a
Part No: MD015A152MAB, 152M50V / X2Z152M
Q'ty: 1000 EA
Remark: TUBE200pcs
152M50V, 1.5nF50V-20%, 1500PF50V-20%, 0.0015UF50V-20%

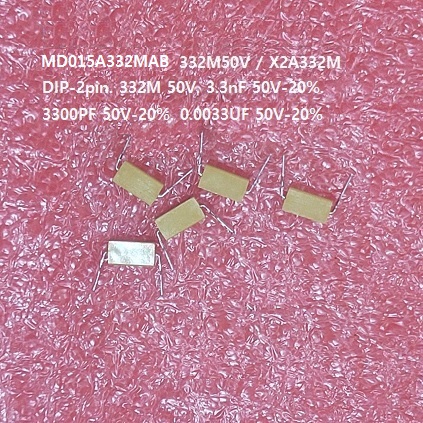

Item: MONOLITHIC CERAMIC CAPACITOR
Description: DIP-2pin. 332M 50V, 3.3nF 50V-20%,
3300PF 50V-20%, 0.0033UF 50V-20%
Vendor: AVX
D/C: n/a
Part No: MD015A332MAB, 332M50V / X2A332M
Q'ty: 1000 EA
Remark: TUBE 200pcs
332M50V, 3.3nF50V-20%, 3300PF50V-20%, 0.0033UF50V-20%

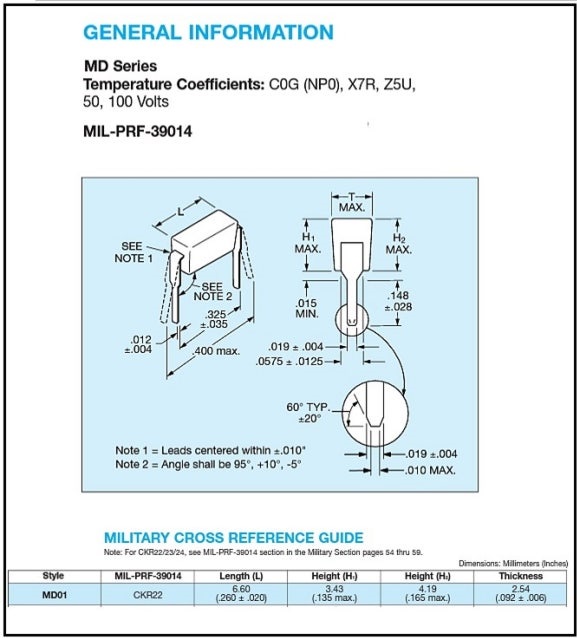

Capacitance 0.1µF Voltage(DC) 50V, Capacitance Tolerance ± 20%,
Dielectric Characteristic Z5U, Capacitor Case / Package DIP
Product Width 2.54mm, Operating Temperature Min 10°C
Capacitor Terminals Radial Leaded, Lead Spacing 0.825mm
Product Range DIPGuard MD Series
Product Length 6.6mm, Product Height 3.43mm
Operating Temperature Max 85°C, SVHC Lead (19-Jan-2021)
