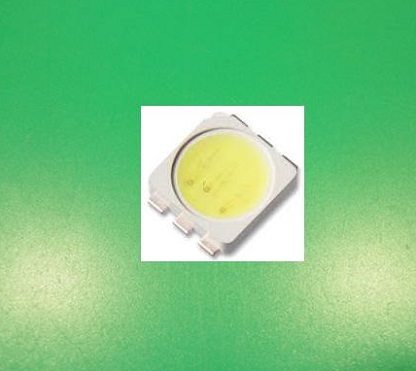

CHIP LED
Middle Power Wihte Chip LED
중전력 화이트 칩 LED
Size:6.0x5.2x1.3mm

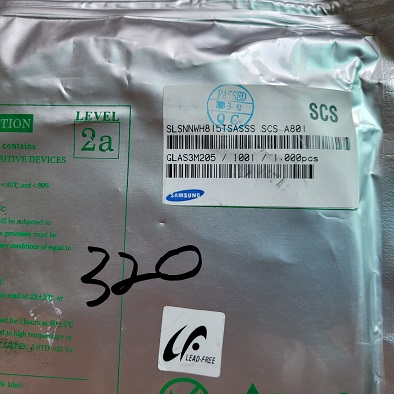

SLSNNWH815TSASSS SCS A801
Q'ty: 1000 EA
SAMSUNG 08+ reel 1000pcs
SLSNNWH815TS ASSS SCS A801
CHIP LED
Middle Power Wihte Chip LED
중전력 화이트 칩 LED
Size:6.0x5.2x1.3mm

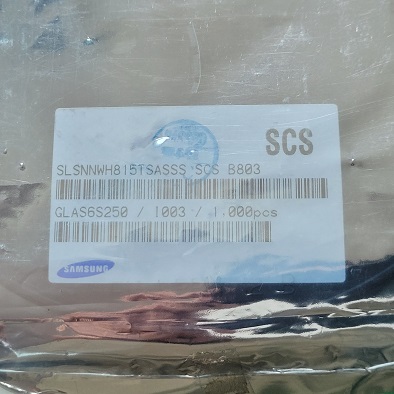

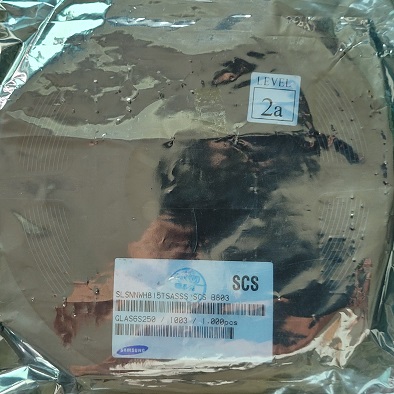

SLSNNWH815TSASSS SCS B803
Q'ty: 1000 EA
SAMSUNG 08+ reel 1000pcs
SLSNNWH815TS ASSS SCS B803
CHIP LED
Middle Power Wihte Chip LED
중전력 화이트 칩 LED
Size:6.0x5.2x1.3mm

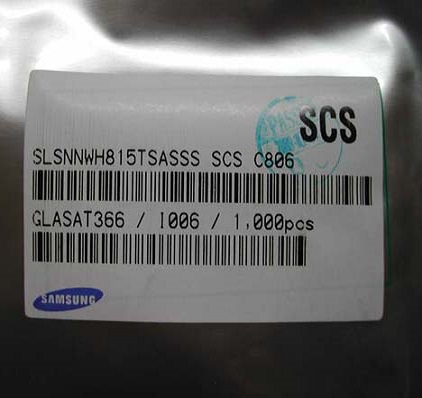

SLSNNWH815TSASSS SCS C806
Q'ty: 1000 EA
SAMSUNG 08+ reel 1000pcs
SLSNNWH815TS ASSS SCS C806
Applications, 용도
Mobile Camera Phone, 휴대폰 카메라용
Flashligt for Camera, 카메라 플래시
Channel Letter, General Lighting, 채널 문자, 일반 조명
Archiecture lighting, 건축 조명
1. Product Outline
1) Feature
.Lead Frame Type LED Package(5.2*6.0*t1.3mm)
.Beam Angle (△θ:1200 )
.Al GaInP, GaN/Al2 O3 Chip & Long Time Reliability
2) Applications
.Indoor, Outdoor Displayand etc.
2. Absolute Maximum Rating
1) .Operation Forward Current Per Chip............30㎃
2) .Peak Pulsed Forward Current Per Chip.......100㎃
(Duty1/10Pulse Width10msec)
3) .ReverseCurrent.........................................85㎃
4) .Operating Temperature Range (Topr )........-30℃∼85℃
5) .Storage Temperature Range (Tstg )...........-40℃∼100℃
1. 제품개요
1) 특징
.리드프레임형 LED 패키지(5.2*6.0*t1.3mm)
.빔 각도(Δθ:1200 )
.Al GaInP, GaN/Al2 O3 칩 및 장기간 신뢰성
2) 응용
.실내, 실외 디스플레이 등
2. 절대 최대 정격
1) .칩당 순방향 동작 전류............30㎃
2) .칩당 최대 펄스 순방향 전류.......100㎃
(듀티1/10펄스폭10msec)
3) .역전류..................................................85㎃
4) .사용온도범위(Topr )........-30℃∼85℃
5) .보관온도범위(Tstg)...........-40℃∼100℃
